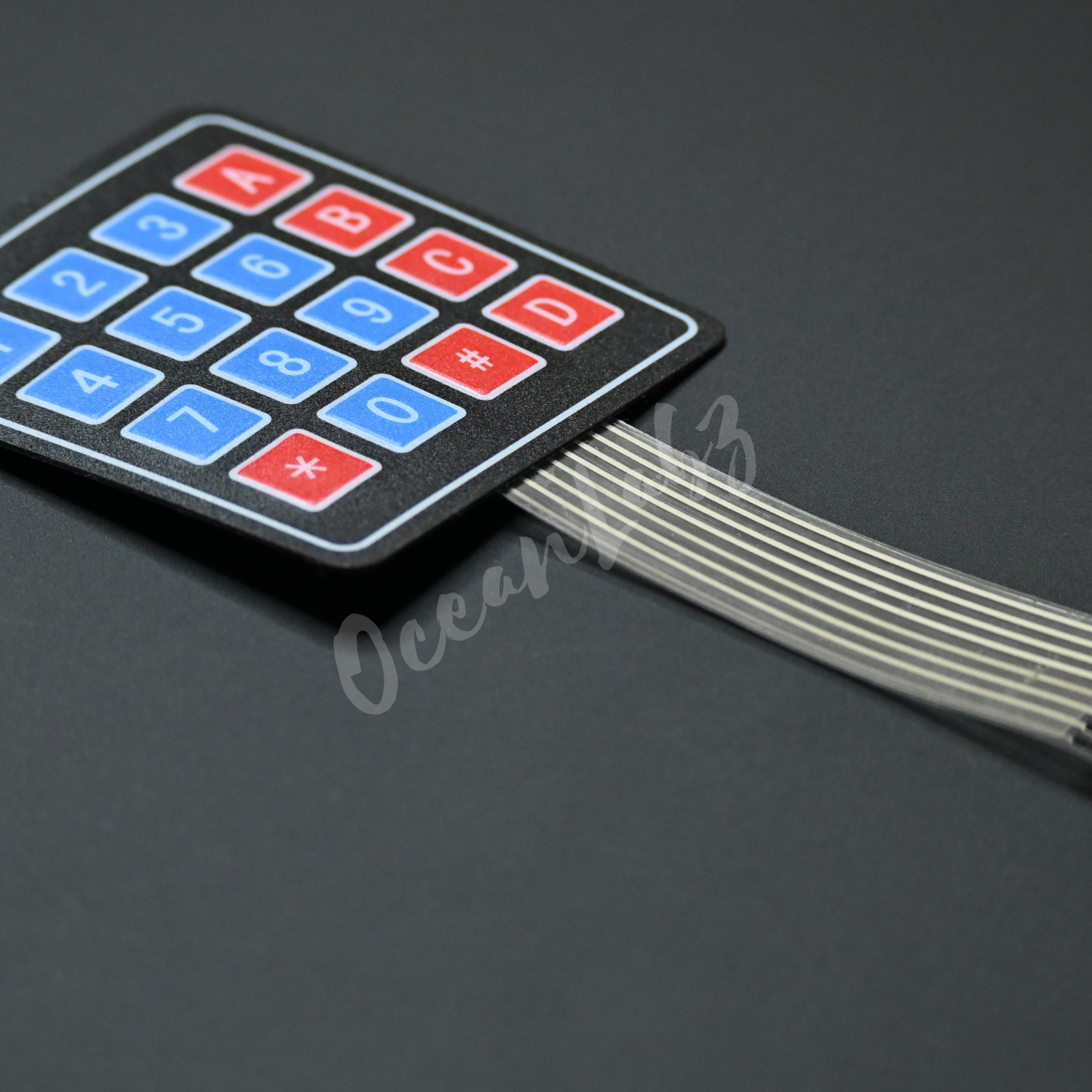

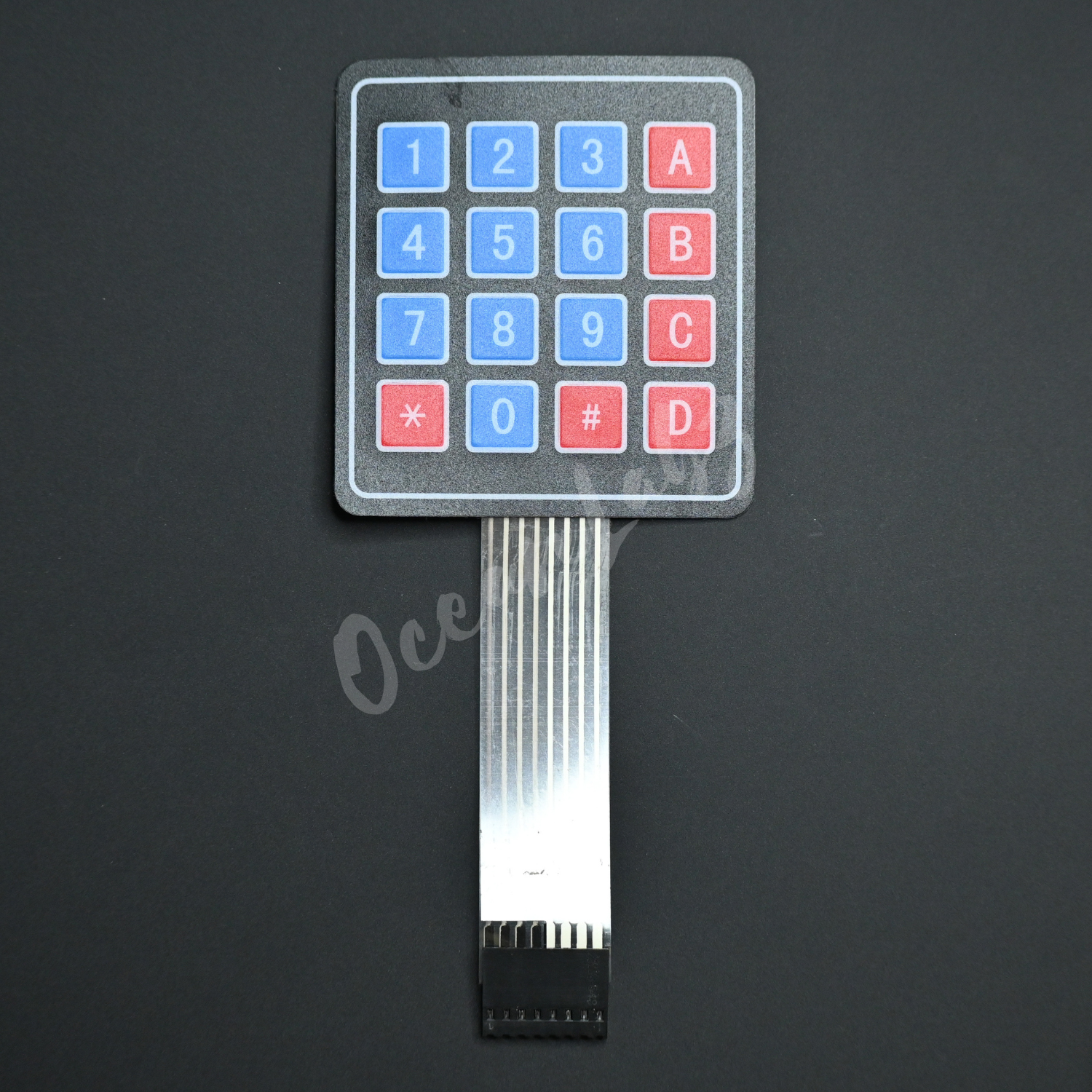

This 4×4 keypad module has a total 16 different keys and comes in 4×4 matrix. The keypad comes in stripped form connectors which can directly be attached to the respective microcontroller development board.
FEATURES & SPECIFICATIONS
- 4 x 4 Matrix Membrane Keypad

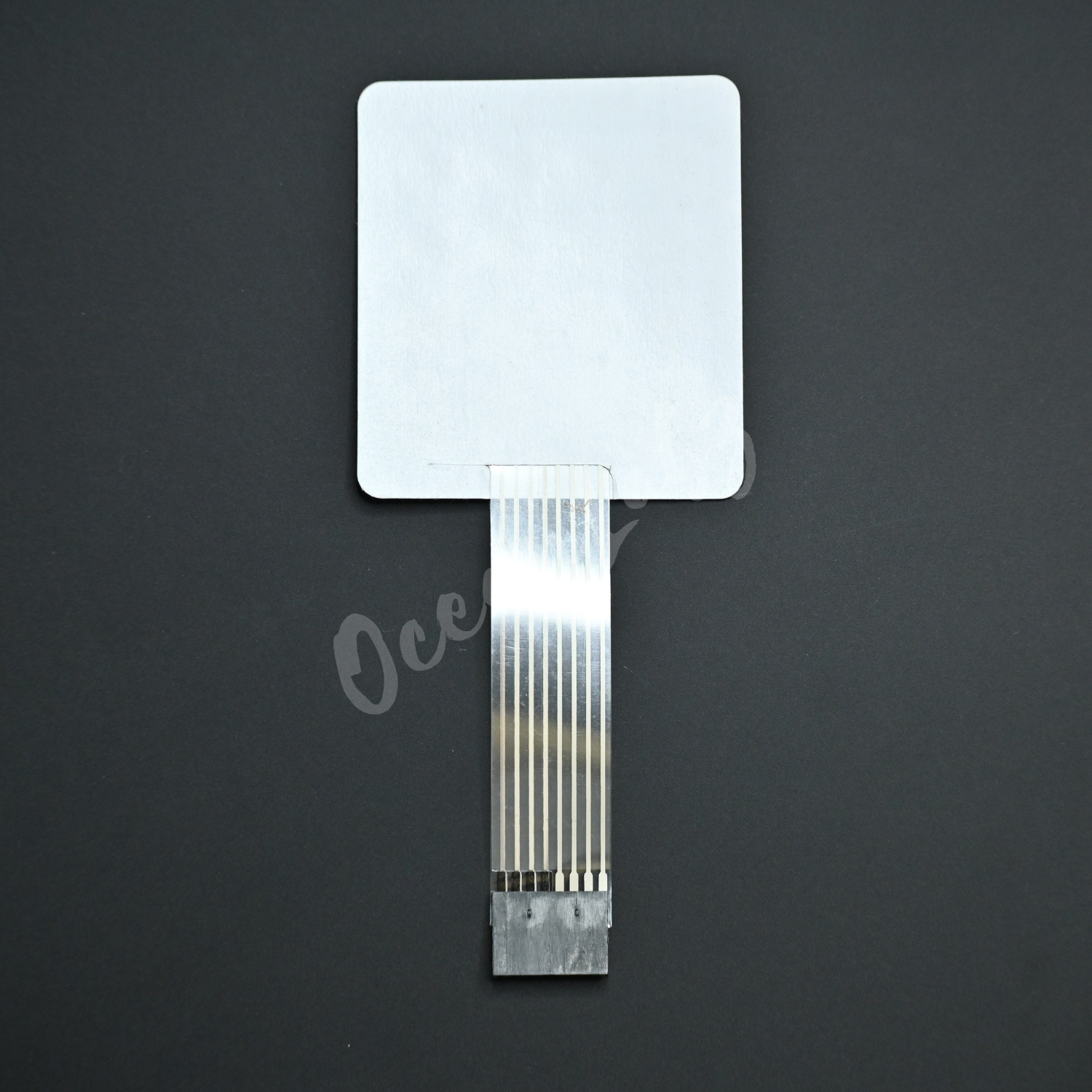

- Adhesive mounting (sticker on the back side)
- 8 pin connector
- Operation Temperature: 0 to +60 centigrade
- Flexible Circuit Length: Approx. 3.3 inch / 83 mm
- Humidity: 40 centigrade, 90%-95%, 240 hours
APPLICATIONS
- Hobby Projects
- Security systems
- Measurement Instruments
- Vending machines
- Industrial machines
- Data entry for Embedded Systems
