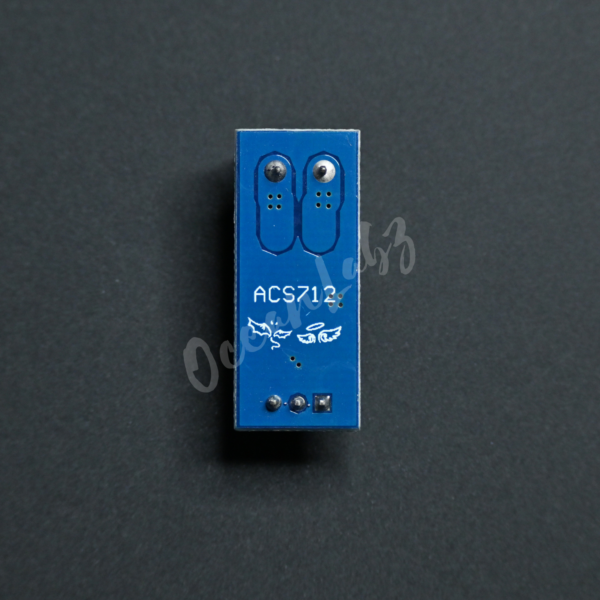

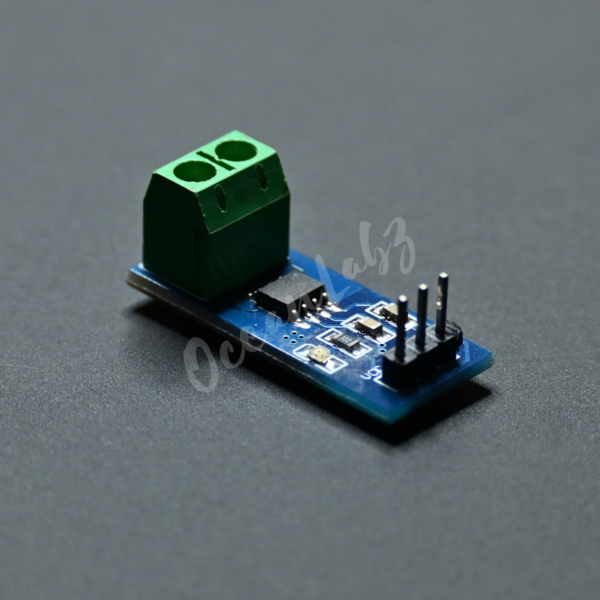

In most of the IoT based projects, SMPS and battery management systems, measuring how much current is flowing in the circuit is paramount. It decides the capacity of the battery to be used and predict the run time. It is also crucial in design of safety systems or any circuit to ensure the correct rating of the components to be selected. The ACS712 20A Current Sensor Module is a Hall Effect based sensor module to determine the current flowing in a given line. It can measure both AC and DC current up to 20A in both directions. Its output when no current is flowing through it is 2.5V and its scale factor is 100mV/A i.e. if 10A current is flowing through it then its output will be 3.5V. It also provides isolation from the load so you don’t need to worry about putting extra load in the circuit to measure current. . You should select the current sensor module according to maximum current you want to measure.
SPECIFICATIONS
- 100 mV/A output sensitivity
- 5.0 V, single supply operation
- Output voltage proportional to AC or DC currents
- Factory-trimmed for accuracy
- Extremely stable output offset voltage
- Nearly zero magnetic hysteresis
- Analog Output so can be easily connected to any Microcontroller
