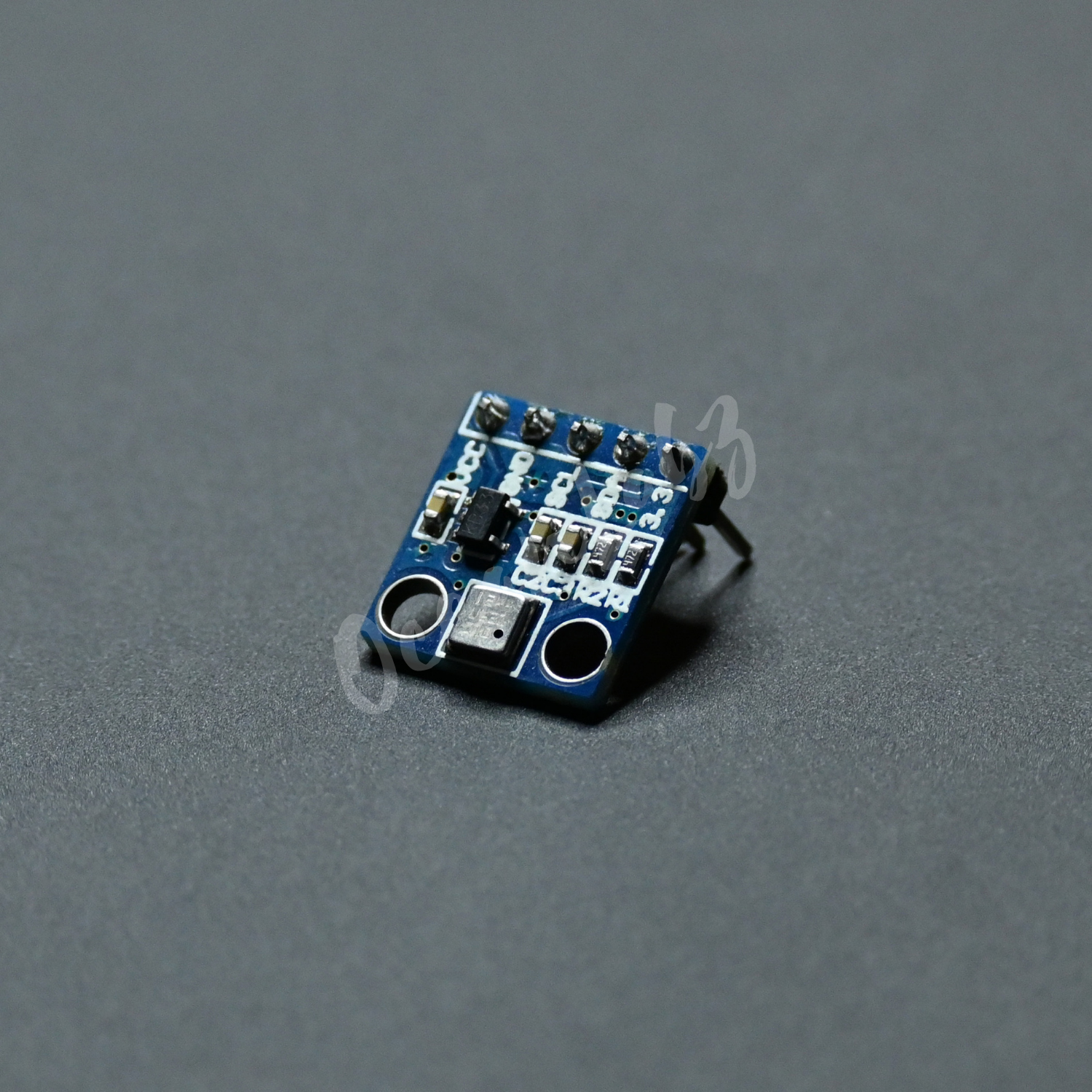

BMP180 Digital Barometric Pressure Sensor Module

This is a BMP-180 based digital barometric pressure sensor module and is functionally compatible with the older BMP-085 digital pressure sensors with less power consumption smaller in size and more accurate.

BMP180 combines barometric pressure, temperature, and altitude. The I2C allows easy interface with any microcontroller. Onboard 3.3V LDO regulator makes this board fully 5V supply compatible. BMP-180 can measure pressure range from 300 to 1100hPa (+9000m to -500m relating to sea level) with an accuracy down to 0.02hPa (0.17m) in advance resolution mode. BMP-180 is an improved replacement for the BMP-085 sensor. BMP-180 uses piezo-resistive technology for high accuracy, linearity, EMC robustness, and stability for a longer period of time.

TECHNICAL SPECIFICATIONS

• Operating Voltage 3 to 5VDC
• Logic: 3 to 5V compliant
• Pressure sensing range: 300-1100 hPa (9000m to -500m above sea level)
• Up to 0.03hPa / 0.25m resolution
• -40 to +85°C operational range, +-2°C temperature accuracy
• This board/chip uses I2C 7-bit address 0x77.
