Supply voltage: DC 3.6 ~ 6.0V / 3.3V Supplying Supply Current: Current: <120mA Peak current: <140mA Fingerprint image time: <1.0 seconds Window size: 14 ╳ 18 mm Matching mode: Match mode (1:1) Search mode (1: N) Signature File: 256 bytes Template files: 512 bytes Storage capacity: 200 max Safety level: five (from low to high: 1,2,3,4,5) False Accept Rate (FAR): <0.001% (security level 3) False Reject Rate (FRR): <1.0% (security level 3) Search time: <1.0 seconds (1:500, the mean) PC Interface: UART (TTL logic level) or USB2.0 / USB1.1 Communication baud rate (UART): (9600 ╳ N) bps where N = 1 ~ 12 (default value N = 6, ie 57600bps) Working environment: Temperature: -20 ° – +50 ° Relative Humidity: 40% RH-85% RH (non-condensing) Storage environment: Temperature: -40 ° – +85 ° Relative humidity: <85% H (non-condensing) Dimensions (L ╳ W ╳ H): Split: Fingerprint sensor: 56 ╳ 20 ╳ 21.5mm -One: 56 ╳ 20 ╳ 21.5mm Hardware connection: Module via a serial communication interface, directly with 3.3V or 5V power microcontroller communication: Module data transmission feet (2 Foot TD) connected to the data bit machine receiving end (RXD), data receiver module feet (3 feet RD) connected to the data sender bit machine (TXD). For the RS-232 level (for example: PC machine) for PC communication, increase the level conversion between the module and the host computer Circuitry (e.g.: MAX232 circuit) Package includes: 1PCS Optical Fingerprint reader Sensor Module sensors All-in-one For Arduino Lock.
TECHNICAL SPECIFICATION

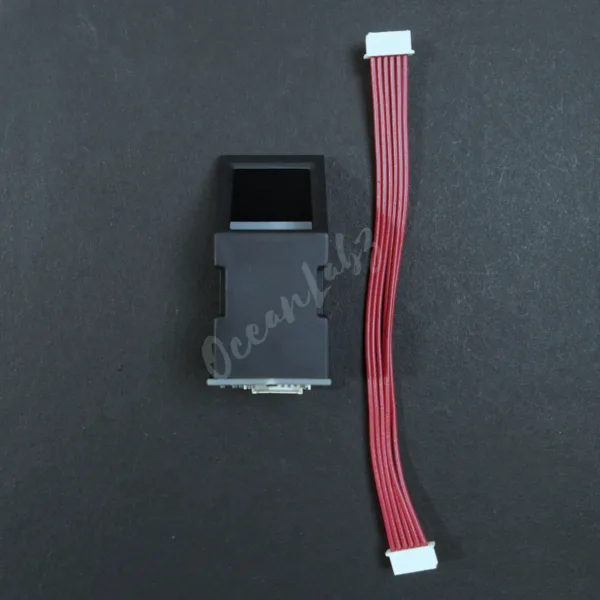

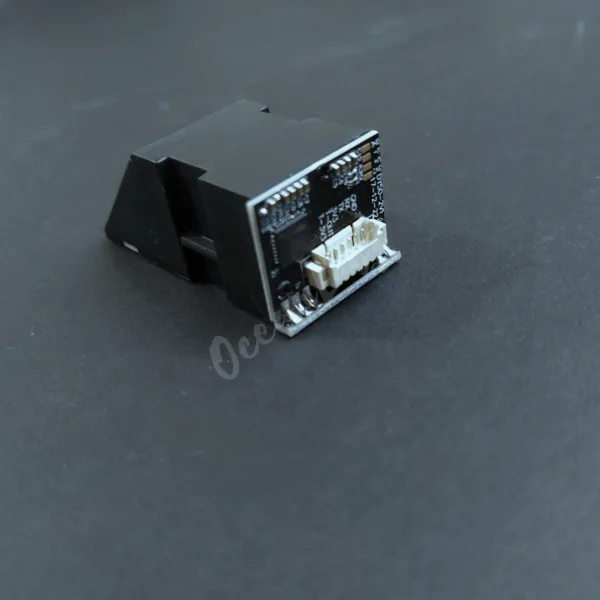

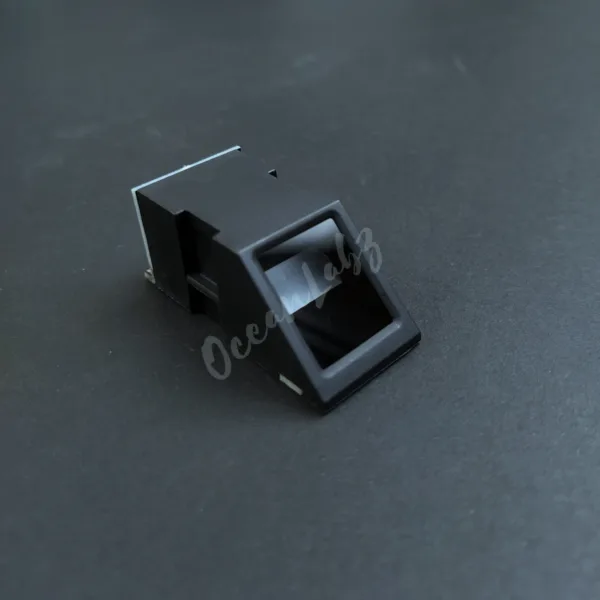

- Type: Optical fingerprint sensor
- Resolution: 500 DPI
- Image Area: 15.3 x 18.2 mm
- Capture Time: < 0.5 seconds
- Capacity: Up to 200 fingerprints
- Interface: UART or TTL serial
- Voltage: 3.6V – 6.0V DC
- Current: < 120 mA
- Temperature Range: -20°C to 50°C
- Applications: Access control, time attendance, biometric security
