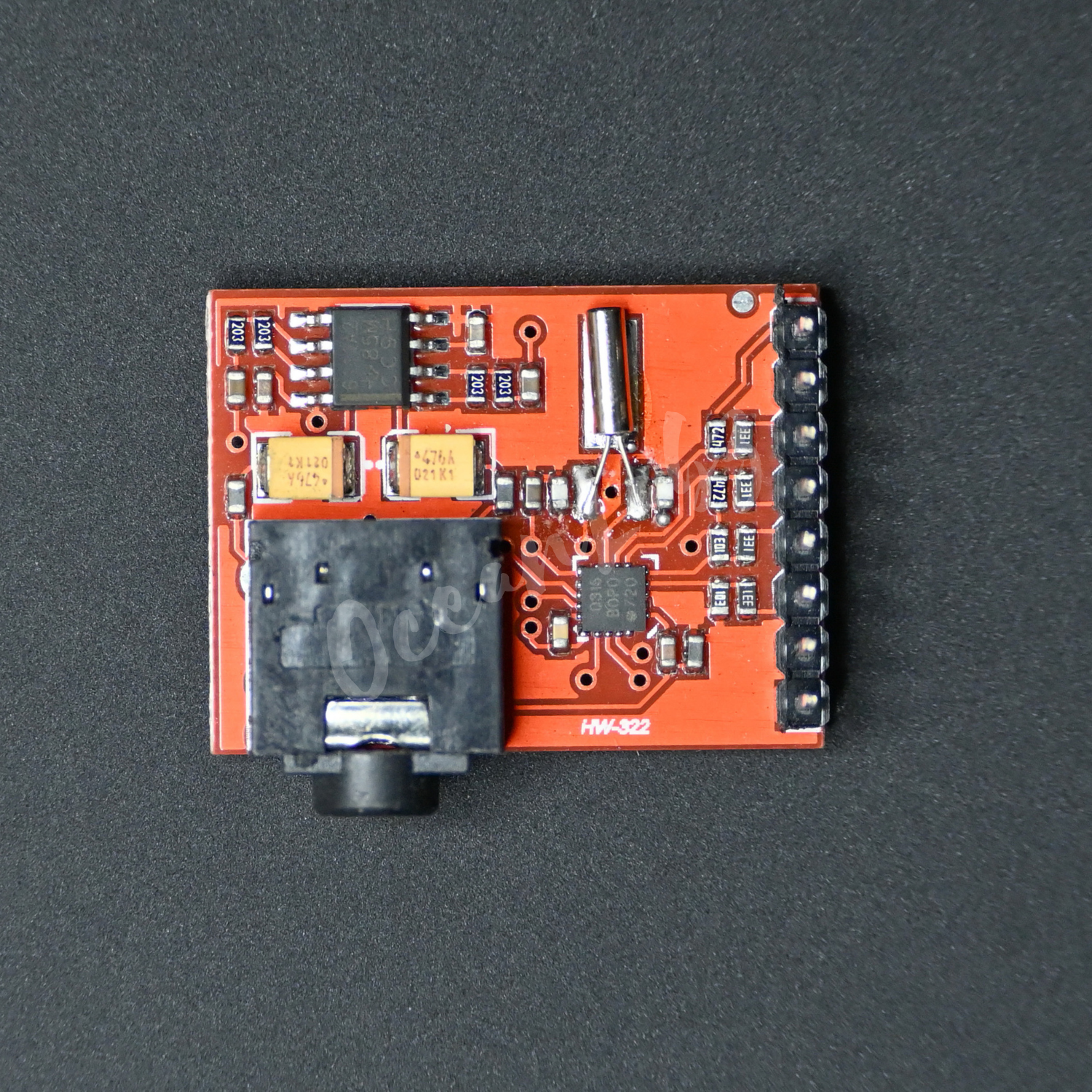

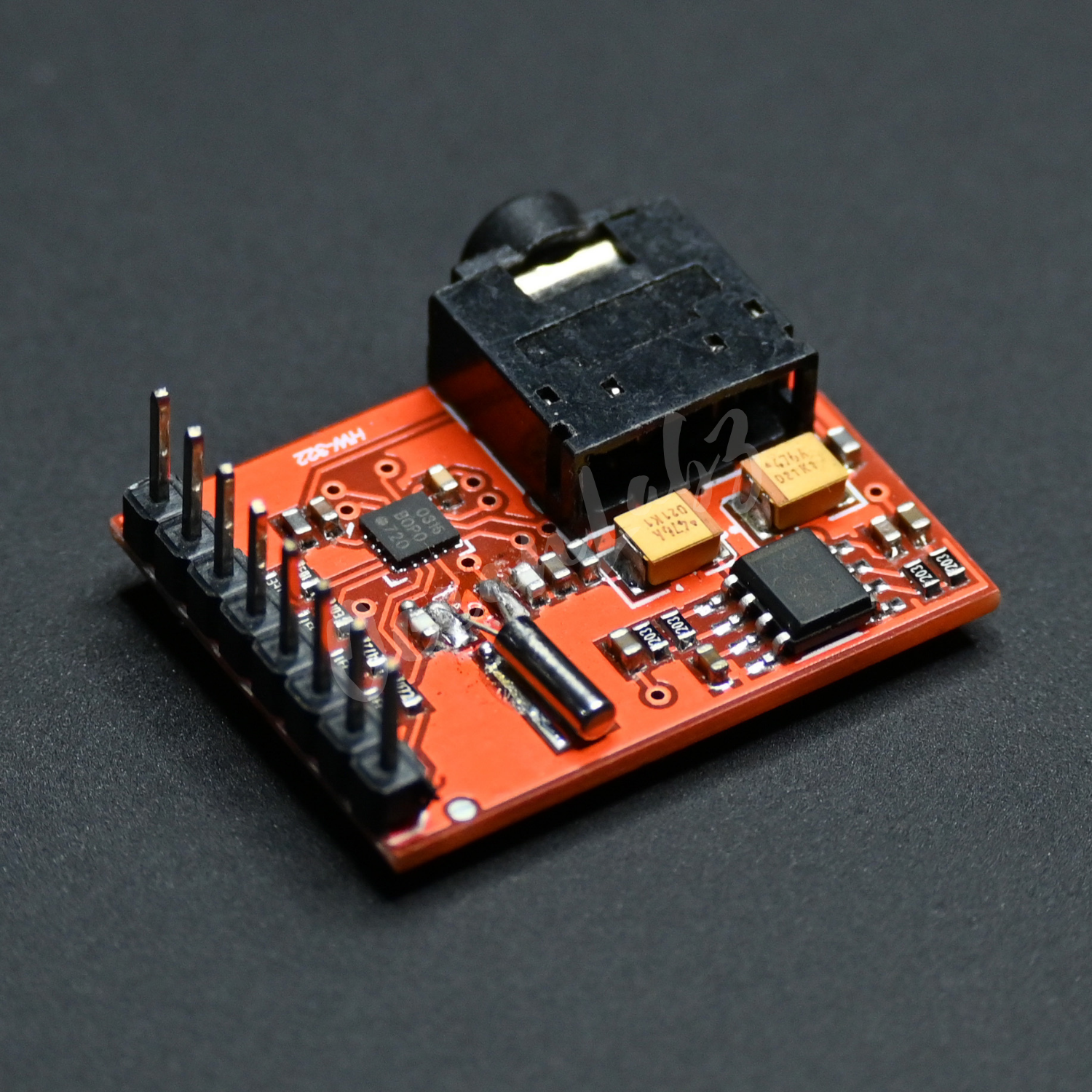

Si4703 FM Radio Tuner Evaluation Development Board

This is an evaluation board for the Silicon Laboratories Si4703 FM tuner chip. Beyond enabling you to tune in to FM radio stations, the Si4703 is also capable of detecting and processing both Radio Data Service (RDS) and Radio Broadcast Data Service (RBDS) information. The Si4703 even does a very good job of filtering and carrier detection. It also enables data such as the station ID and song name to be displayed to the user.

TECHNICAL SPECIFICATION

• 2.7 to 5.5 V supply voltage
• Integrated LDO regulator
• 3 x 3 mm 20-pin QFN package
• Pb-free/RoHS compliant
• RDS/RBDS Processor (Si4703)
• Integrated crystal oscillator
