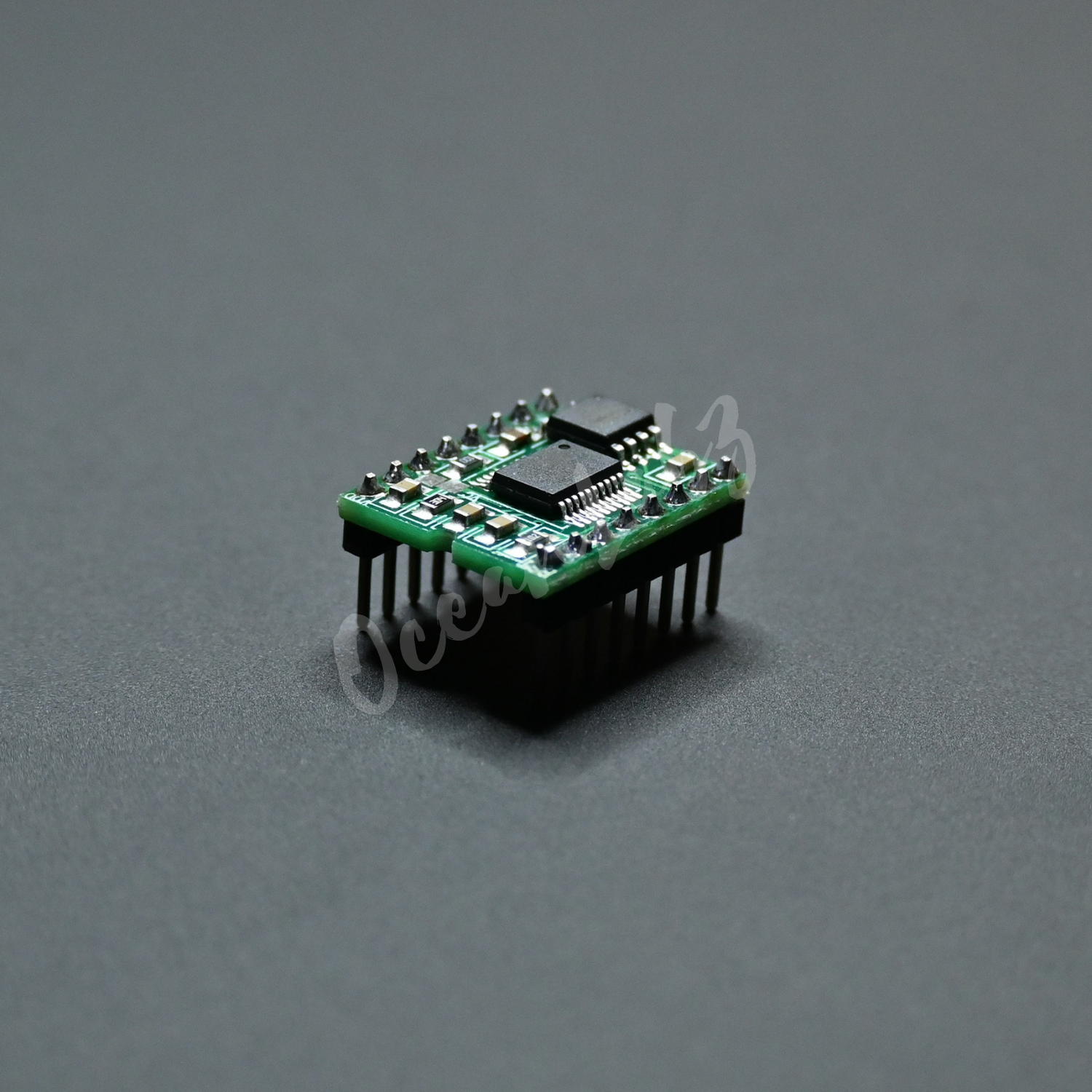

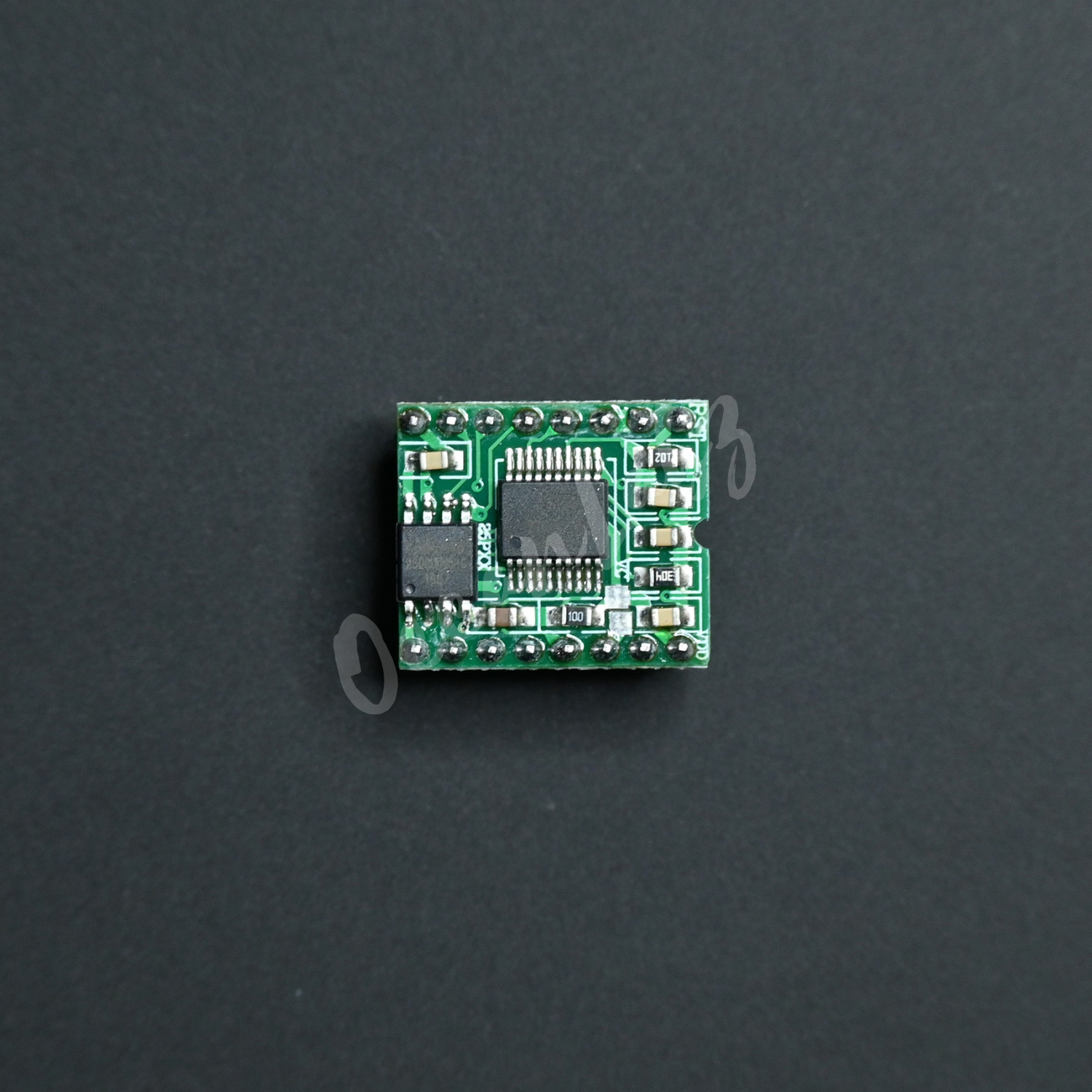

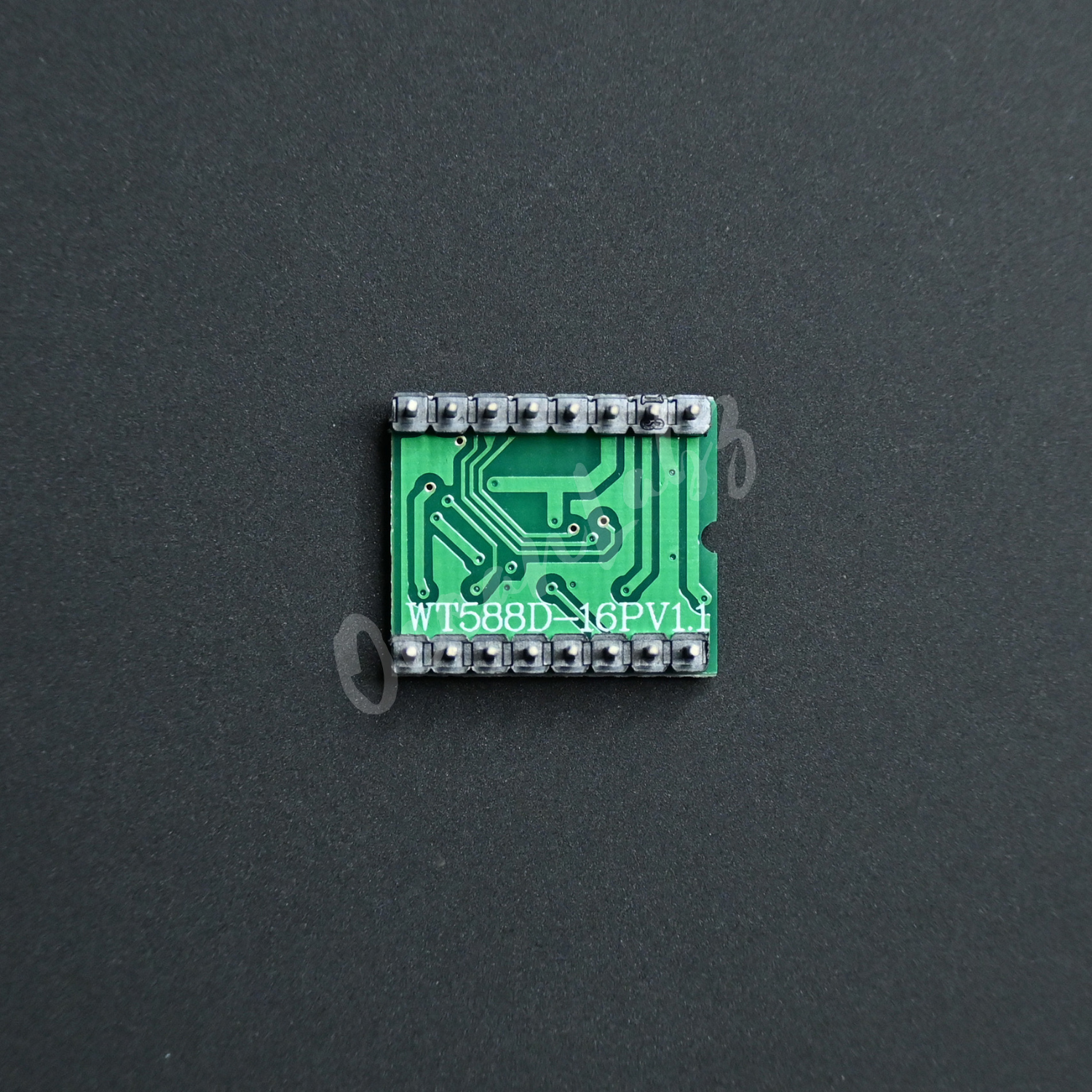

WT588D-16P Voice Sound Audio Player Module

This Module is for playing MP3 and WAV files on a WT588D microcontroller with built-in memory. Easy-to-use file preparation software, easy download, and simple control of audio playback with decent quality. There is a PWM output for directly connecting a small speaker.

FEATURES & SPECIFICATIONS

1. Module package (with FLASH memory and peripheal circuits) have DIP16, DIP28, chip packaging has DIP18, SSOP20, and LQFP32 form.
2. ;Built 13Bit/DA converter, and 12Bit/PWM output.
3. PWM output can directly drive 0.5W/8Ω speakers, push-pull current abundant support DAC / PWM output of two ways.
4. Support for loading WAV audio formats.
5. USB download mode, support for online download / offline download.
6. PWM output can directly drive 0.5W/8 speakers, push-pull current abundant support DAC / PWM output of two ways;
7. Support for loading WAV audio formats;
8. USB download mode, support for online download / offline download; WT588D voice chip, even in the case of electricity, will also be able to download the data to the normal SPI-Flash;
9. Supports MP3 control mode, control mode button, 3 8 key combination control mode, parallel control mode, front-line serial control mode, three-wire serial control mode, and three-wire serial control I / O port expansion output mode;
10. Support load 6K ~ 22KHz audio sampling rate
11. Up to 500 segments can be loaded for editing audio.
